2009 Harley-Davidson® Electra Glide® Ultra Classic FLHTCU- u677660
Get in Touch
Description

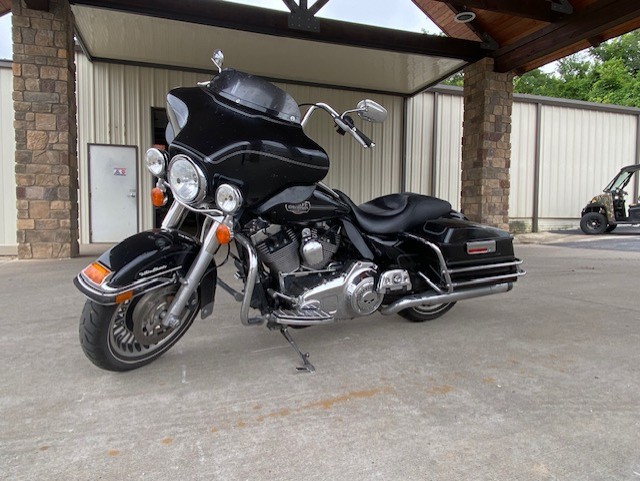

2009 HARLEY-DAVIDSON® ULTRA CLASSIC® ELECTRA GLIDE®
The ultimate Touring model from Harley-Davidson®, the Ultra Classic® Electra Glide® is fully equipped for a life on the road. Electronic cruise control, 80-watt Advanced Audio System by Harman/Kardon® with passenger sound system, vented fairing lowers and adjustable fairing wind deflectors, luggage liners, and CB radio/intercom are all standard equipment. The Tour-Pak rack has been redesigned with no pierced holes in the tubes for Tour-Pak attachment. The Tour-Pak and saddlebag capacities are increased by five pounds, and it is easier to adjust the Tour-Pak fore and aft for passenger comfort. New features for 2009 include shorty dual antennas that will clear a seven-foot garage door, mid-frame air deflectors that project radiant engine heat away from the rider, and a brighter, long-lasting LED rear fender tip light.
Dealer Notes
Pricing may not include destination or setup charges. Get in touch with us for the most accurate price.
Description
- Redesigned Frame
- Front Forks and Rear Shocks
- New Cast Aluminum Wheels with Dunlop® Tires
- Redesigned Isolated Drive System
- Rubber-Mounted, 1584cc Twin Cam 96™ Engine
- New 2-1-2 Exhaust System
- "Bat Wing", Fork-Mounted Fairing
- Full-Length Rider and Passenger Footboards
- One-Piece, Two-Up Classic Seat
- Injection-Moded GTX® Saddlebags and King Tour-Pak
- Harmon/Kardon Advanced Audio System
- LED Lights
- Stainless Steel, Easy Reach Handlebars
- Length: 98.3 in. (2496.82 mm)
- Laden Seat Height: 27.3 in. (693.42 mm)
- Unladen Seat Height: 30.7 in. (779.78 mm)
- Ground Clearance: 5.10 in. (129.54 mm)
- Rake Steering Head/Trail: 26° / 6.69 in. (169.93 mm)
- Wheelbase: 63.5 in. (1613.92 mm)
- Fuel Capacity: 6.0 gal. (22.71 l)
- Oil Capacity: 4.0 qt. (3.78 l)
- Dry Weight: 827.0 lbs. (375.12 kg)
- Running Order Weight: 864.0 lbs. (391.90 kg)
- Engine: Air-cooled, Twin Cam 96®
- Displacement: 96.00 cu. in. (1584 cc)
- Bore x Stroke: 3.75" x 4.38" (95.25 x 111.25 mm)
- Engine Torque: 125.57 Nm / 92.60 ft lbs @ 3500 rpm
- Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
- Compression Ratio: 9.2 :1
- ESPFI: 54 hwy / 35 city MPG (4.36 hwy / 6.72 city l/100 km)
- Primary Drive: Chain, 34/46 ratio
- 1st Gear Ratio: 9.593
- 2nd Gear Ratio: 6.65
- 3rd Gear Ratio: 4.938
- 4th Gear Ratio: 4
- 5th Gear Ratio: 3.407
- 6th Gear Ratio: 2.875
- Front Wheel: Black, 28-spoke Cast Aluminum
- Rear Wheel: Black, 28-spoke Cast Aluminum
- Wheel Option: Chrome, Profile Laced Aluminum
- Front Tire Size: 130/80B17 65H
- Rear Tire Size: 180/65B16 81H

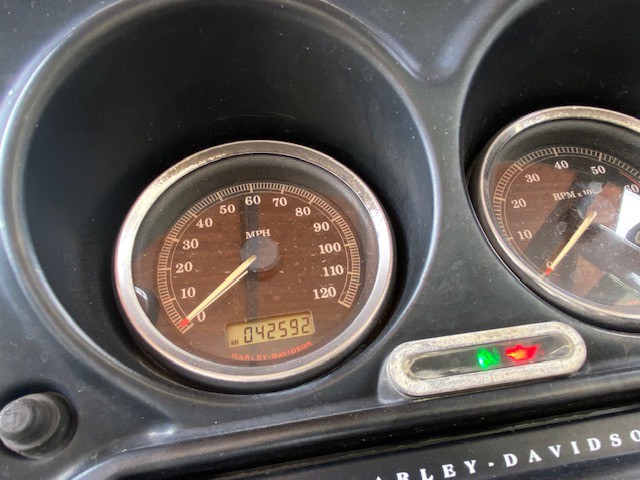

- Instruments: Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual tripmeter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
- Indicator Lamps: High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system6 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
- Brakes: 4-piston fixed front and rear
- Lean Angle (per SAEJ1168): 31° / 33°
- Exhaust System: Chrome, dual exhaust w/ taper End Caps
- Color: Vivid Black; Pewter Pearl; Flame Blue Pearl (New); Red Hot Sunglo (New); Two-Tone Vivid Black/Pewter Pearl; Two-Tone White Gold Pearl/Pewter Pearl; Two-Tone Flame Blue Pearl/Pewter Pearl (New)
Additional charges for paint colors may apply.
Info
Industry
Powersports
Make
Harley-Davidson®
Model
Electra Glide® Ultra Classic
Trim
FLHTCU
Year
2009
Msrp
7429.00
Stock Number
u677660
Category
Cruiser/V-Twin
Subcategory
Cruiser/V-Twin
Condition
Pre-Owned
Location
Wood Powersports - Harrison
Fuel Type
Gas
VIN
1HD1FC41X9Y677660
Color
Vivid Black
