2026 CFMoto CFORCE 500 Magma Red
Now, check out these numbers: 34 horsepower. 29 lb-ft of torque. 10.3 inches of ground clearance. 1,350 pounds of towing capacity. 2,500-pound winch. 4WD with diff lock. All of it standard. This isn’t just a mid-size ATV—it’s the golden ratio of power, price, and pure usability. The CFORCE 500 delivers confident, smooth performance with a liquid-cooled 500cc engine and ride-by-wire throttle. Class-leading vibration reduction keeps it comfortable all day, and the EPS makes it nimble in tight woods and steady at speed. Whether you're hauling firewood, exploring backcountry, or plowing a fresh dump of snow—this machine just shows up and gets it done.
Features May Include:
Electronic Power Steering (EPS)
- Tuned to assist when you need it and stay firm when you don’t. Responsive on the trail, confident in the corners.
500cc Liquid-Cooled Engine
- 34 horsepower of smooth, consistent power from a Bosch® EFI-equipped single. Paired with a CVTech® CVT, it pulls hard, runs cool, and keeps going.
2,500-Lb. Factory Winch
- Built in and wired up. Whether it’s recovery, logs, or snowbanks—this winch isn’t just for looks.

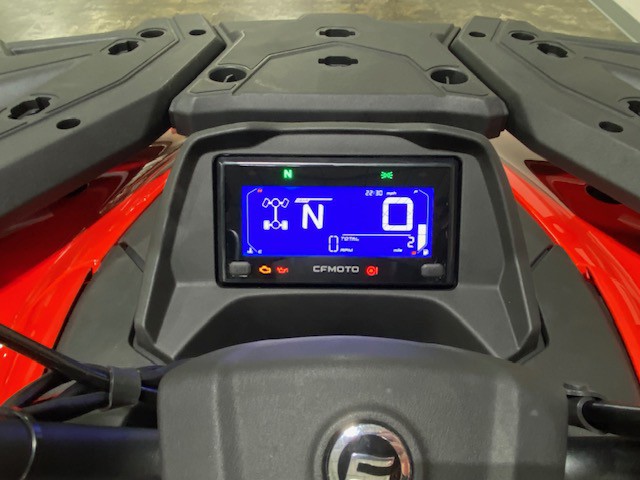

3.5” LCD Display
- Clean, clear, and fully digital. Keep your vitals front and center at a glance.
RideVision™ LED Lighting
- Bright, efficient LED lighting for better visibility and modern style—standard.
Dealer Notes
Pricing may not include destination or setup charges. Get in touch with us for the most accurate price.
Description
Meet the 2026 CFMOTO CFORCE 500, a utility ATV that’s ready to turn workdays into “let’s take the long way home” days—especially in , a look that stands out whether it’s parked by the barn, the campsite, or the trailhead. (And if you ever want a different vibe, this model is also offered in Magma Red, Pearl White, and True Timber Camo.)
At the heart of the CFORCE 500 is a 500cc, liquid-cooled, single-cylinder, 4-stroke engine with SOHC and 4 valves. It’s fuel-injected with Bosch electronics, starts with the push of an electric starter, and runs on regular gas—simple, practical, and trail-friendly. Power comes on with purpose, delivering 34 hp at 6,800 rpm and 29 ft-lbs of torque at 6,000 rpm, the kind of usable muscle that feels right when you’re hauling, climbing, or just rolling confidently through changing terrain.
The drivetrain is built for utility-minded flexibility: a CVTech CVT keeps things smooth, reverse makes tight spots painless, and high/low range helps you choose between cruising and controlled pulling. When conditions change, selectable 4x2/4x4 lets you adapt on the fly, backed by a front differential lock for those moments when traction matters most. Power gets to the ground through shaft drive to both ends, while the engine-to-transmission connection uses a belt drive.
Size-wise, it’s substantial without feeling bulky: about 80 inches long, a tight 9.1-ft turning radius, and a reassuring 10.3 inches of ground clearance. Independent double A-arm suspension front and rear (with preload adjustability) helps keep the ride composed, while 25-inch tubeless tires on aluminum wheels and hydraulic disc brakes bring a confident, planted feel.
And when it’s time to put in real effort, this ATV doesn’t shy away—there’s 1,350 lbs of towing capacity with a receiver hitch, plus rugged protection like a brush guard, radiator guard, and multiple skid/bash plates. It’s utility, with personality—especially in .
- Magma Red: +$0
- Pearl White: +$0
- True Timber Camo: +$350
- Warranty (Months): 12
- Engine Type: Single-Cylinder
- Cylinders: 1
- Horsepower: 34 bhp; 25.4 kW
- Cooling: Liquid
- Displacement: 500 cc; 30.5 ci
- Starter: Electric
- Fuel Type: Gas
- Carburetion Type: Fuel Injected
- Transmission Type: Continuously Variable (CVT)
- Reverse: Yes
- Driveline Type: Selectable 4X2 / 4X4
- Length: 80 in; 2032 mm
- Width: 44 in; 1117.6 mm
- Height: 45 in; 1143 mm
- Wheelbase: 50 in; 1270 mm
- Ground Clearance: 10.3 in; 261.6 mm
- Dry Weight: 713 lbs; 323.4 kg
- Towing Capacity: 1350 lbs; 612.4 kgs
- Fuel Capacity: 4.5 gal; 17 l
- Frame: Steel
- Front Suspension Type: Independent Double A-Arm
- Front Travel: 7.5 in; 190.5 mm
- Rear Suspension Type: Independent Double A-Arm
- Rear Travel: 8.9 in; 226.1 mm
- Front Tire (Full Spec): 25 x 8 R12
- Rear Tire (Full Spec): 25 x 10 R12
- Front Brake Type: Hydraulic Disc
- Rear Brake Type: Hydraulic Disc
- Seat Height: 20 in; 508 mm
- Number Of Seats: 1
- Speedometer: Standard
- Tachometer: Standard
- Trip Odometer: Standard
- Capacity: 75 lbs; 34 kgs
- Capacity: 132 lbs; 59.9 kgs
- Type: LED
- Windshield: Optional
Info
Industry
Powersports
Make
CFMOTO
Model
CFORCE 500
Trim
Magma Red
Year
2026
Msrp
6499
Price
6499.00
Stock Number
CFM001593
Category
ATV
Subcategory
ATV
Condition
New
Location
Wood Powersports - Harrison
Fuel Type
Gas
VIN
LCEFDTZ78TT001593
Color
Magma Red
Specifications
Warranty
1-Year Factory Warranty
Engine Type
Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
Engine Disp to Wgt
500cc
Horsepower
34 HP @ 6800 RPM
Torque
29 LB-FT @ 6000 RPM
Fuel System
EFI
Engine Cooling
Liquid cooled
Drive Train
2WD/4WD/4WD lock
Transmission
CVTech® CVT P/R/N/H/L
Length
80”
Width
44”
Height
45”
Wheelbase
50”
Weight (Dry)
713 lbs.
Ground Clearance
10.3”
Fuel Capacity
4.5 gal.
Seat Height
20”
Suspension (Front)
Double A-arm independent
Suspension (Rear)
Double A-arm independent
Wheels
12” Cast Aluminum
Front Tire
25” x 8” x R12
Rear Tire
25” x 10” x R12
Rear Shocks
Spring preload adjustable, oil damped
Front Shocks
Spring preload adjustable, oil damped
Front Wheel (Dia)
7.5”
Rear Wheel (Dia)
8.9”
